1．實驗任務

如圖所示，AT89S51單片機的P1.0－P1.3接四個發光二極管L1－L4，P1.4－P1.7接了四個開關K1－K4，編程將開關的狀態反映到發光二極管上。（開關閉合，對應的燈亮，開關斷開，對應的燈滅）。

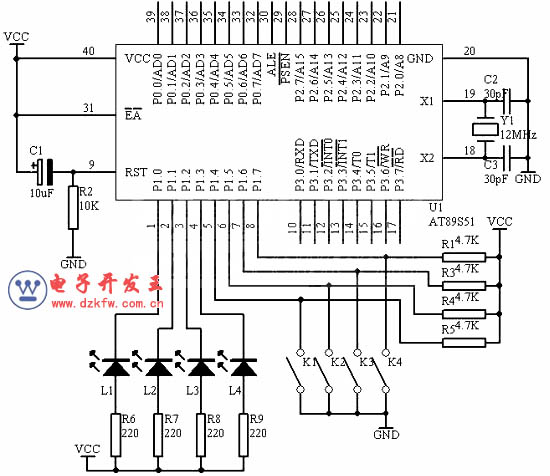

2．電路原理圖





3．系統板上硬件連線

（1．       把“單片機系統”區域中的P1.0－P1.3用導線連接到“八路發光二極管指示模塊”區域中的L1－L4端口上；

（2．       把“單片機系統”區域中的P1.4－P1.7用導線連接到“四路撥動開關”區域中的K1－K4端口上；

4．  程序設計內容

（1．       開關狀態檢測

對于開關狀態檢測，相對單片機來說，是輸入關系，我們可輪流檢測每個開關狀態，根據每個開關的狀態讓相應的發光二極管指示，可以采用JB P1.X，REL或JNB P1.X，REL指令來完成；也可以一次性檢測四路開關狀態，然后讓其指示，可以采用MOVA，P1指令一次把P1端口的狀態全部讀入，然后取高4位的狀態來指示。

（2．       輸出控制

根據開關的狀態，由發光二極管L1－L4來指示，我們可以用SETB P1.X和CLR P1.X指令來完成，也可以采用MOV P1，＃1111XXXXB方法一次指示。

5．程序框圖 (略)

6．方法一（匯編源程序）

                                      ORG 00H

START:                        MOV A,P1

                                      ANL A,#0F0H

                                      RR A

                                      RR A

                                      RR A

                                      RR A

                                      XOR A,#0F0H

                                      MOV P1,A

                                      SJMP START

                                      END

7．方法一（C語言源程序）

#include

unsigned char temp;



void main(void)

{

  while(1)

    {

      temp=P1>>4;

      temp=temp | 0xf0;

      P1=temp;

    }

}

8．方法二（匯編源程序）

                                      ORG 00H

START:                         JB P1.4,NEXT1

                                      CLR P1.0

                                      SJMP NEX1

NEXT1:                       SETB P1.0

NEX1:                          JB P1.5,NEXT2

                                      CLR P1.1

                                      SJMP NEX2

NEXT2:                       SETB P1.1

NEX2:                          JB P1.6,NEXT3

                                      CLR P1.2

                                      SJMP NEX3

NEXT3:                       SETB P1.2

NEX3:                          JB P1.7,NEXT4

                                      CLR P1.3

                                      SJMP NEX4

NEXT4:                       SETB P1.3

NEX4:                          SJMP START

                                      END

9．方法二（C語言源程序）

#include



void main(void)

{

  while(1)

    {

      if(P1_4==0)

        {

          P1_0=0;

        }

        else

          {

            P1_0=1;

          }

      if(P1_5==0)

        {

          P1_1=0;

        }

        else

          {

            P1_1=1;

          }

      if(P1_6==0)

        {

          P1_2=0;

        }

        else

          {

            P1_2=1;

          }

      if(P1_7==0)

        {

          P1_3=0;

        }

        else

          {

            P1_3=1;

          }

    }

}
